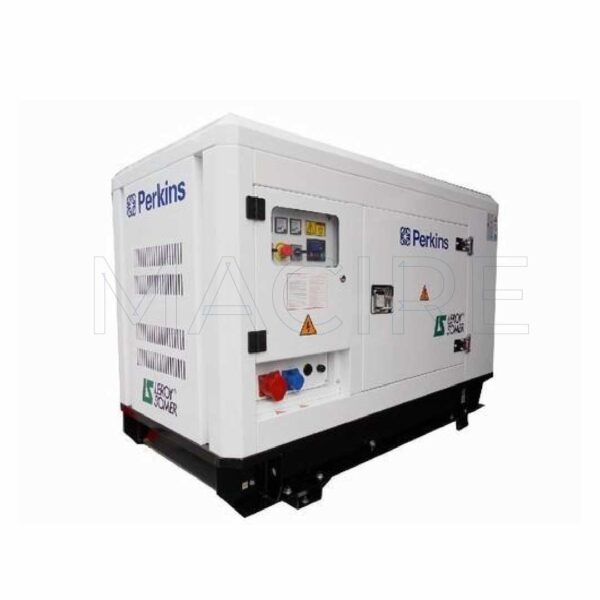

Perkins 10KVA Diesel Silent Generator Heavy Duty

Generator Set Specifications
Minimum Rating
10 kVA / 10 kW
Maximum Rating
13 kVA / 13 kW
Emissions/Fuel Strategy
EU3a Emissions Compliant
50 Hz Prime
10 kVA / 10 kW
50 Hz Standby
11 kVA / 11 kW
60 Hz Prime
12 kVA / 12 kW
60 Hz Standby
13 kVA / 13 kW
Frequency
50 / 60 Hz
Speed
1500 or 1800 RPM
Voltage
220-240 Volts
50 Hz Prime Rating
These ratings are applicable for supplying continuous electrical power (at variable load) in lieu of commercially purchased power. There is no limitation to the annual hours of operation and this model can supply 10% overload power for 1 hour in 12 hours.
60 Hz Prime Rating
These ratings are applicable for supplying continuous electrical power (at variable load) in the event of a utility power failure. No overload is permitted on these ratings. The alternator on this model is peak continuous rated (as defined in ISO 8528-3).
50 Hz Standby Rating
Standard reference conditions 25�C (77�F) Air Inlet Temp, 100m (328 ft) A.S.L. 30% relative humidity. Fuel consumption data at full load with diesel fuel with specific gravity of 0.85 and conforming to BS2869: 1998, Class A2.
Engine Specifications
Engine Model
Perkins® 403D-15G
Bore
84 mm (3.3 in)
Stroke
90 mm (3.5 in)
Governor Type
Mechanical
Displacement
1.5l (91.3 cu. in)
Compression Ratio
22.5:1
